157nm VUV Grade, Non-Magnetic | 4.50CF | CaF-033

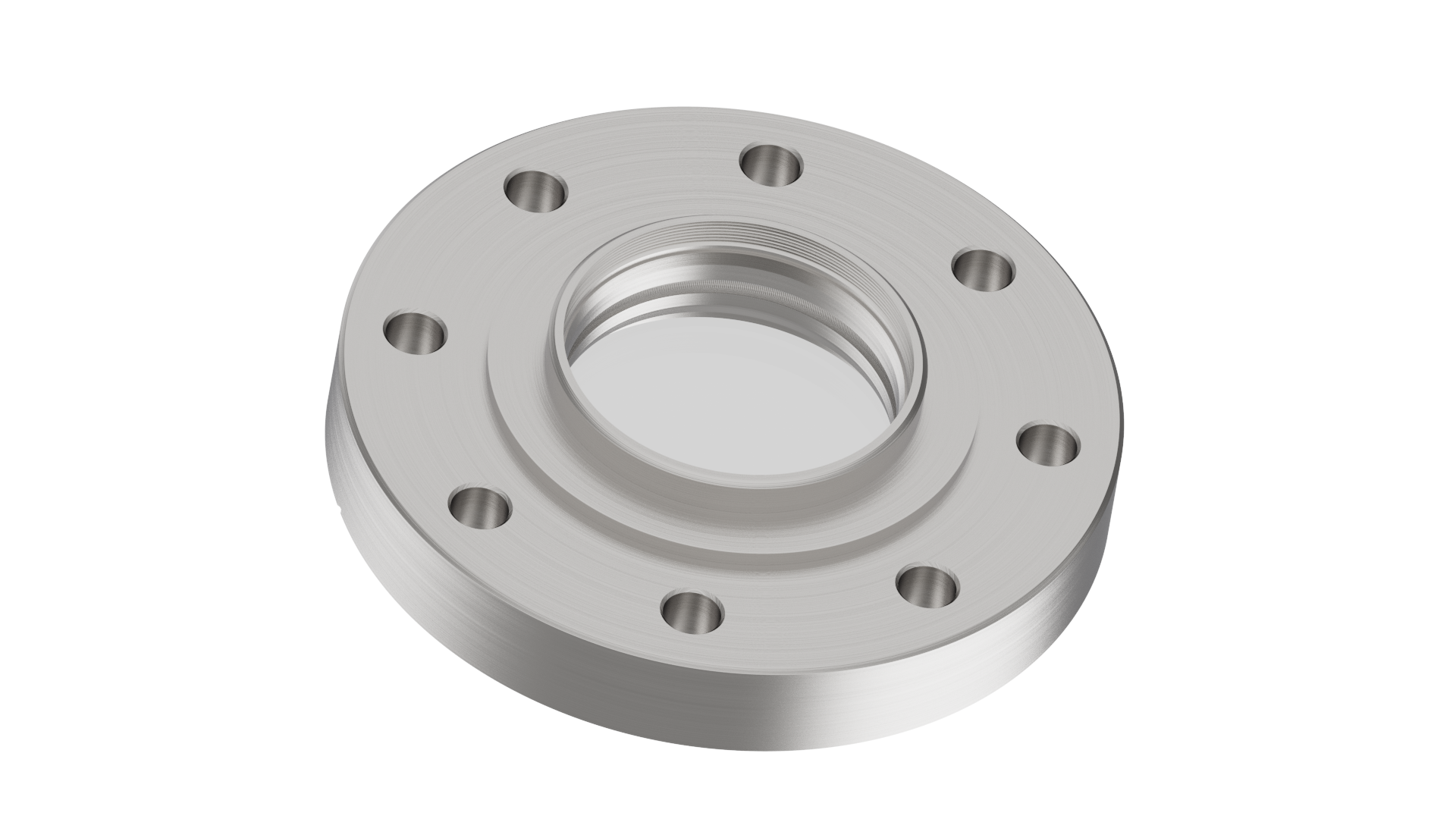

4.50CF Low-mu ss | 157nm VUV Grade | Calcium Fluoride (CaF2) UHV Viewport | 1.88 Inch View
This calcium fluoride extended range UHV viewport is of 157nm VUV grade and has enhanced transmission from 125 nm in the UV through 10.5 microns in the infrared. The UHV mount is a 4.50 inch Conflat flange made of low-mu stainless steel and has a magnetic permeability less than 1.010. The threaded mount mates with safety cover and protective cap using the SM2 Lens Tube System*. A transparent 6mm thick polycarbonate protective cover is available for safe viewing while the primary CaF2 window is not in service. It may also be purchased with a protective anodized aluminum cap for greater thermal uniformity during bake-out.
4.50CF Low-mu ss | 157nm VUV Grade | Calcium Fluoride (CaF2) UHV Viewport | 1.88 Inch View
This calcium fluoride extended range UHV viewport is of 157nm VUV grade and has enhanced transmission from 125 nm in the UV through 10.5 microns in the infrared. The UHV mount is a 4.50 inch Conflat flange made of low-mu stainless steel and has a magnetic permeability less than 1.010. The threaded mount mates with safety cover and protective cap using the SM2 Lens Tube System*. A transparent 6mm thick polycarbonate protective cover is available for safe viewing while the primary CaF2 window is not in service. It may also be purchased with a protective anodized aluminum cap for greater thermal uniformity during bake-out.
4.50CF Low-mu ss | 157nm VUV Grade | Calcium Fluoride (CaF2) UHV Viewport | 1.88 Inch View
This calcium fluoride extended range UHV viewport is of 157nm VUV grade and has enhanced transmission from 125 nm in the UV through 10.5 microns in the infrared. The UHV mount is a 4.50 inch Conflat flange made of low-mu stainless steel and has a magnetic permeability less than 1.010. The threaded mount mates with safety cover and protective cap using the SM2 Lens Tube System*. A transparent 6mm thick polycarbonate protective cover is available for safe viewing while the primary CaF2 window is not in service. It may also be purchased with a protective anodized aluminum cap for greater thermal uniformity during bake-out.
CaF-033 | Non-Magnetic, 157nm VUV Grade
Transmission Curve Material Properties CaF-033.step CaF-033.pdf
*Conveniently mates with SM2 Lens Tube System components
Patent Pending
